Description

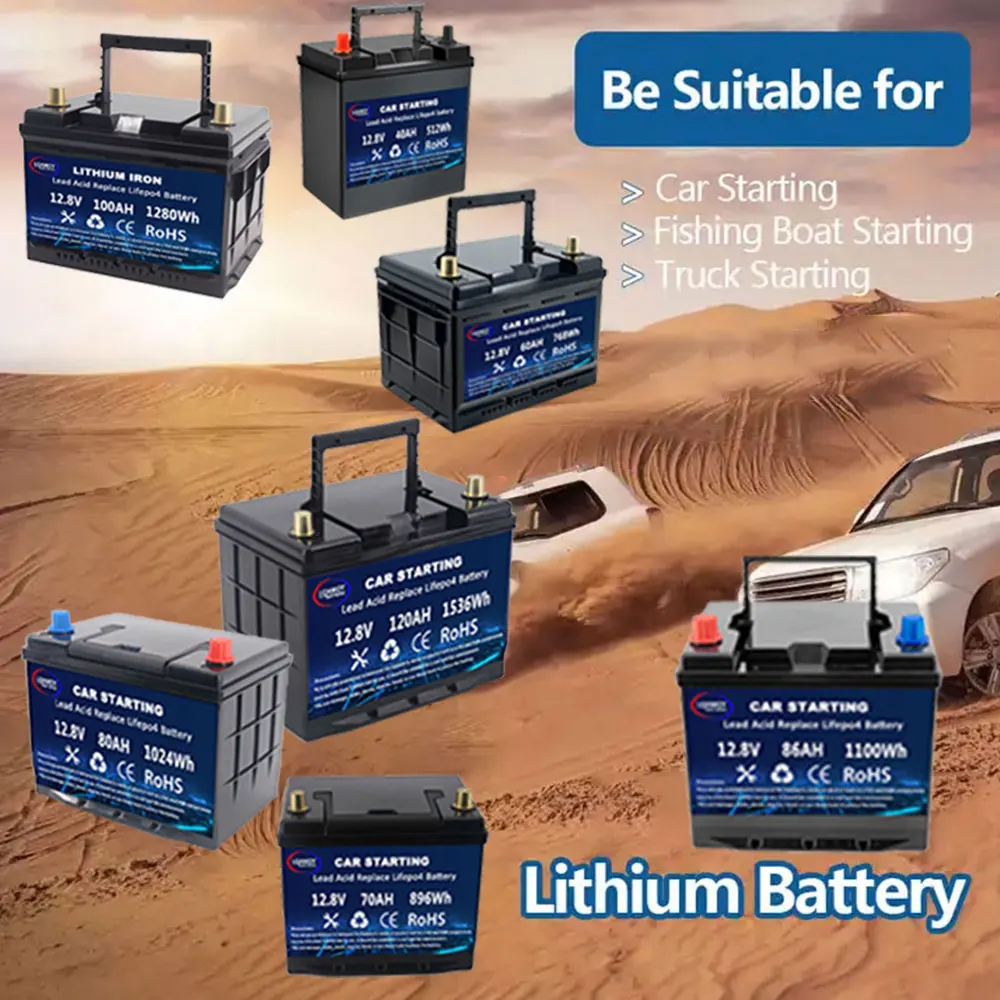

With a super high peak CCA and super large capacity, this 12.8V 150Ah LiFePO4 battery pack, not only can crank and cruise for long, but do so without having to shut off all the electronics. It delivers plenty of power when user need to start outboard motors, generators, cars, and other high-load devices. It can also be used to ensure long and steady power draw to power audio systems and electric downriggers. We support customization, can customize terminals to normal M8 for marine, golf cart using.

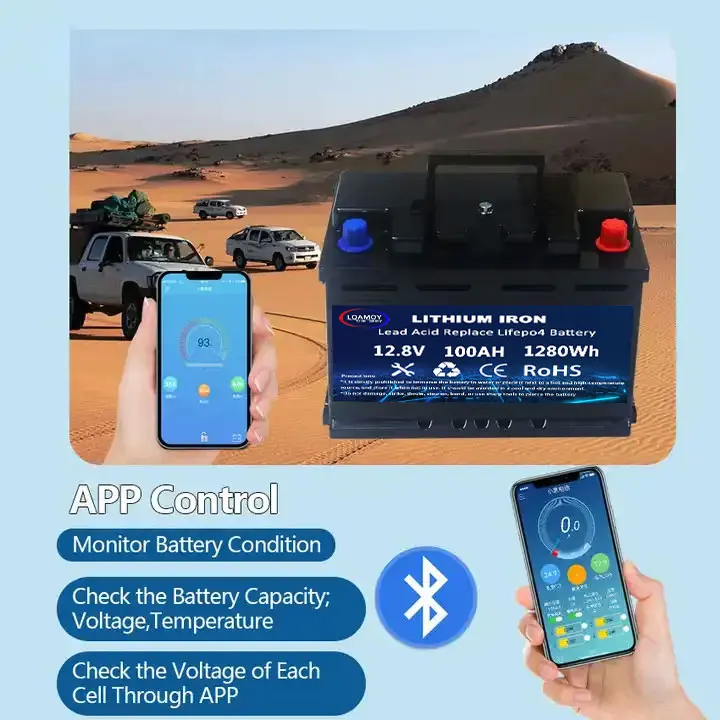

All our batteries uses the safest LiFePO4 technology, no fire, no explode,and have the longest cycle life. And all are built-inwith full functional BMS with over-charge, short circuit, temperature protection and cell balancing. This starting series alsosupport to be customized with low-temperature protection or inner heating tech function, to meet the cold weather.All this series support color, appearance design, function design, monitoring, and even CAN communication,etc.
Battery Type | Deep cycle Rechargeable Lifepo4 Battery | |
Nominal Voltage | 12.8 V | |
Nominal capacity | 40ah 50ah 60ah 70ah 80ah 100ah 120ah 150ah…..ect | |
Internal Resistance | ≤ 3mΩ | |
Cycle life | ≥4000 cycles @1C 80%DOD | |
Standard Charge | Charge Cut-off Voltage | 14.4±0.2V |
Charge Mode | 0.2C to 14.4V, then 14.4V,charge current to 0.02C (CC/CV) | |
Standard Charge Current | 0.2C | |
Max. Charge Current | 1C | |
Standard Discharge | Continuous Current | 1C |
Max. Pulse Current | 2C | |
Discharge Cut-off Voltage | 10V | |
Environmental | Charge Temperature | 0 ℃ to 45 ℃ (32F to 113F) @60±25% Relative Humidity |
Discharge Temperature | -20 ℃ to 60 ℃ (-4F to 140F) @60±25% Relative Humidity | |
Storage Temperature | 0℃ to 40 ℃ (32F to 104F) @60±25% Relative Humidity | |
Water Dust Resistance | IP67 | |

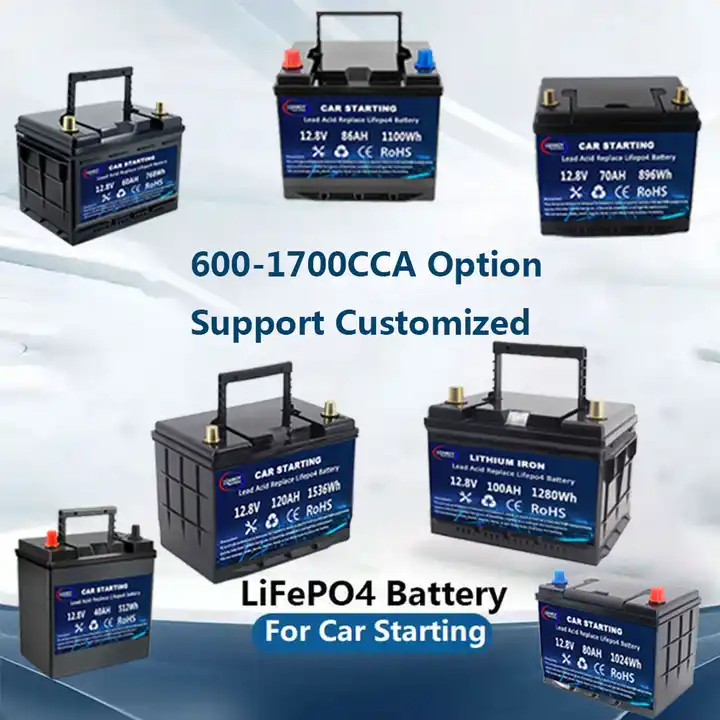

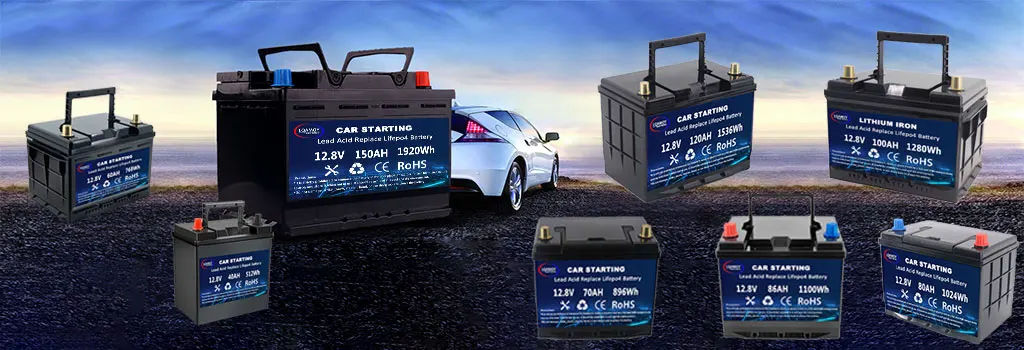

Model | CCA | Size | Weight |
12.8V 40Ah | 600 | 197*128*200mm | 5.2kg |
12.8V 50Ah | 650 | 238*133*222mm | 6kg |
12.8V 60Ah | 800 | 243*175*162mm | 6.5kg |
12.8V 70Ah | 900 | 230*175*181mm | 8kg |
12.8V 80Ah | 950 | 230*175*221mm | 9.5kg |
12.8V 86Ah | 1000 | 260*175*200mm | 10kg |
12.8V 100Ah | 1100 | 279*175*189mm | 11kg |
12.8V 120Ah | 1200 | 355*175*188mm | 13kg |
12.8V 150Ah | 1700 | 398*175*188mm | 18kg |
Yes, we can supply samples in 5-7 days depending on different product items and clients’ requirement. For normal in stock product, 2~5 days; For customized product, 3~7days depends on requirements.Q2: What is the warranty for the products?
1~10 years,Since our product range is wide,Minimum12v 40Ah, Max 2MW container energy storage system, Different products has different warranty,welcome to check before placing order.
Q3: What is your company’s advantage?

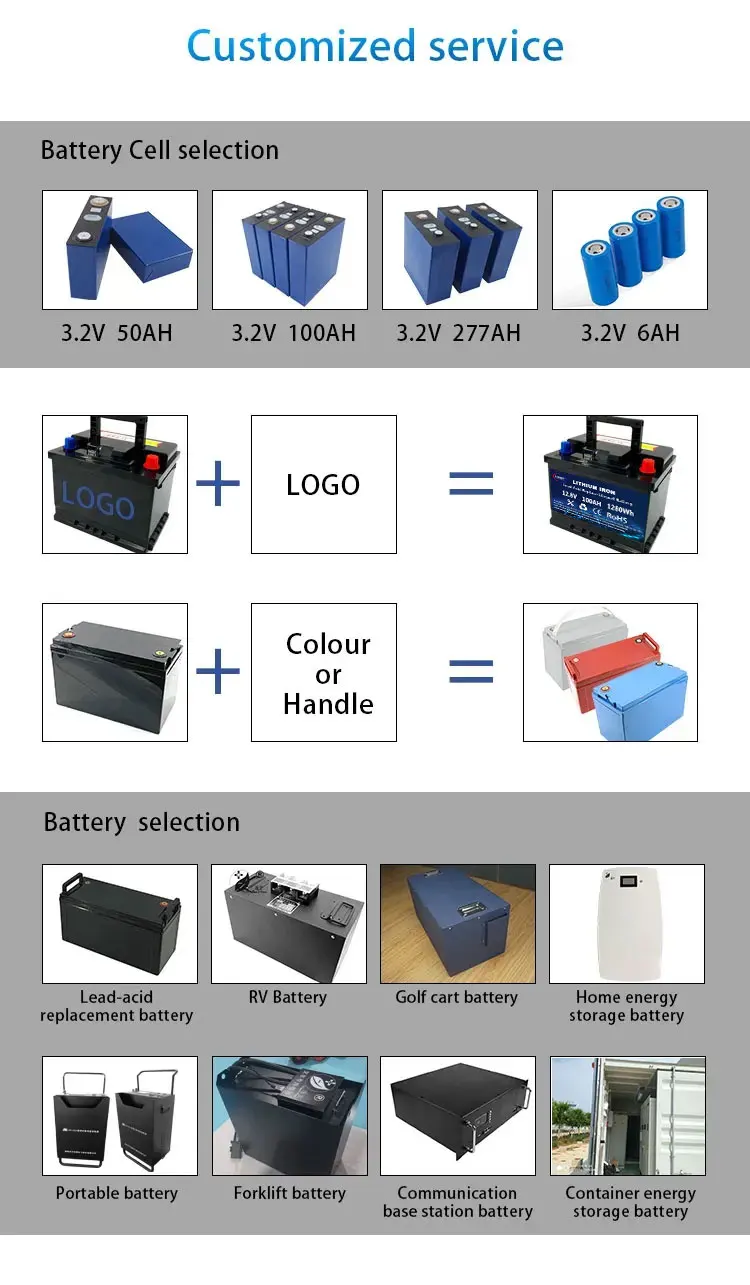

We’re direct factory,have very rich exprience in customizing kinds of high voltage,high capacity, high performance battery packs for 12v / 24v / 48v / 80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V / 460V / 614V Aircraft tractors, heavy truck, Mine train,110v / 220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.
Q4: Do you accept OEM/ODM?
Yes, welcome!
Q5: What is the lead time for the mass order?
Generally speaking, about 7~20 days depending on different items after getting down payment and confirmation about the samples.
Q6: What is the payment terms?
Sample payment accept Paypal, Western union, Escrow; and Mass order by T/T.
