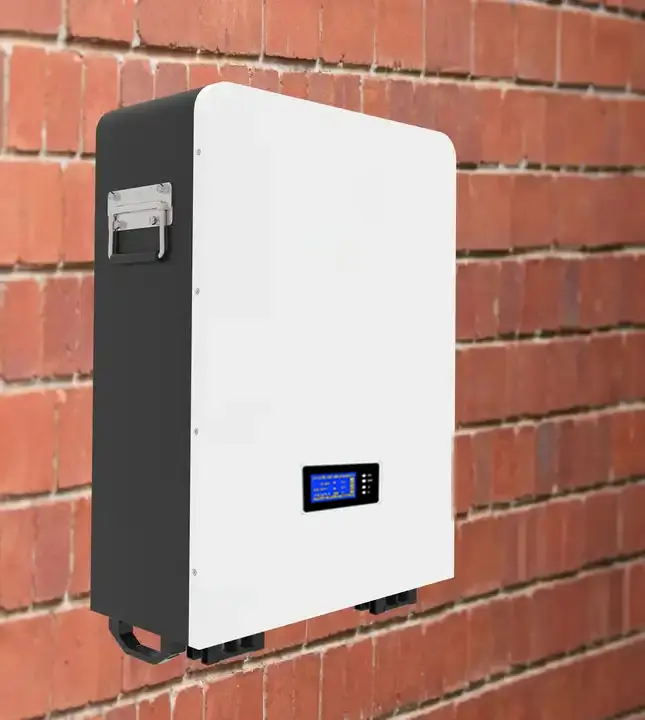

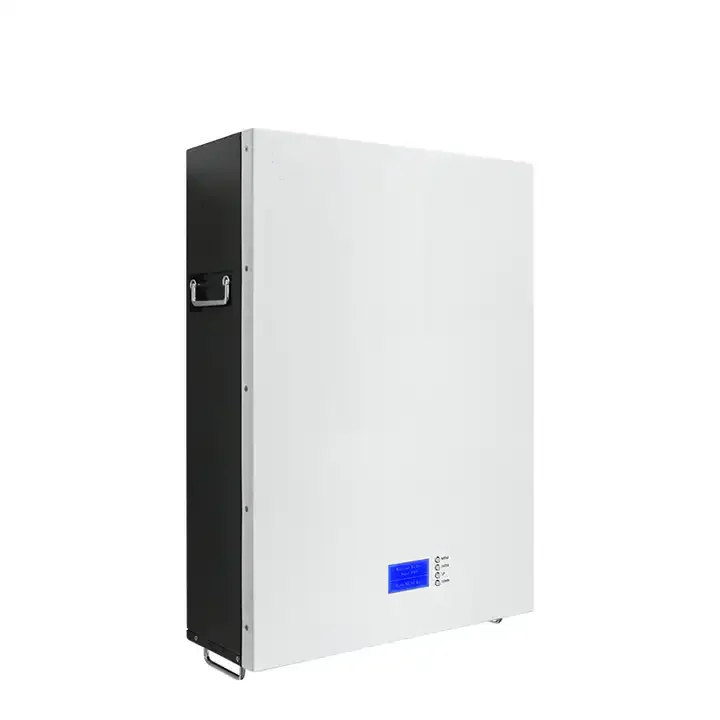

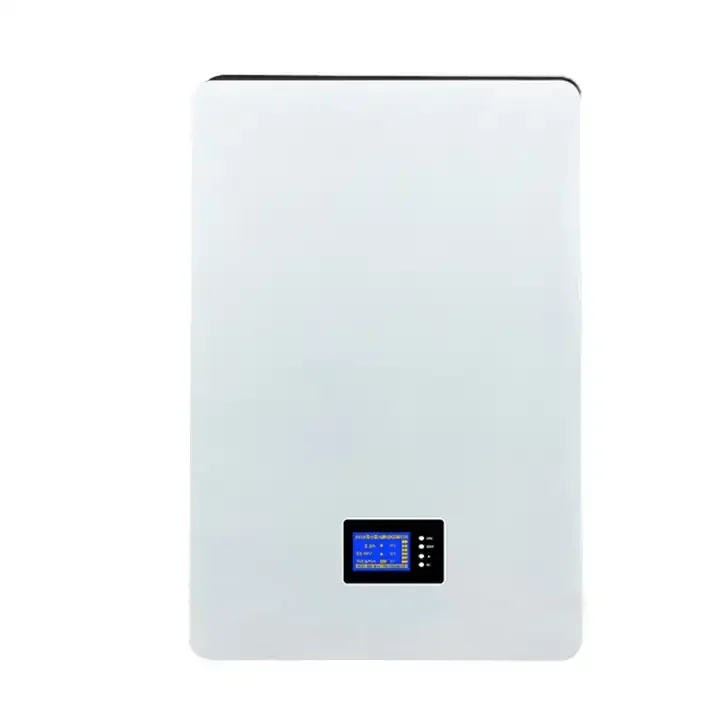

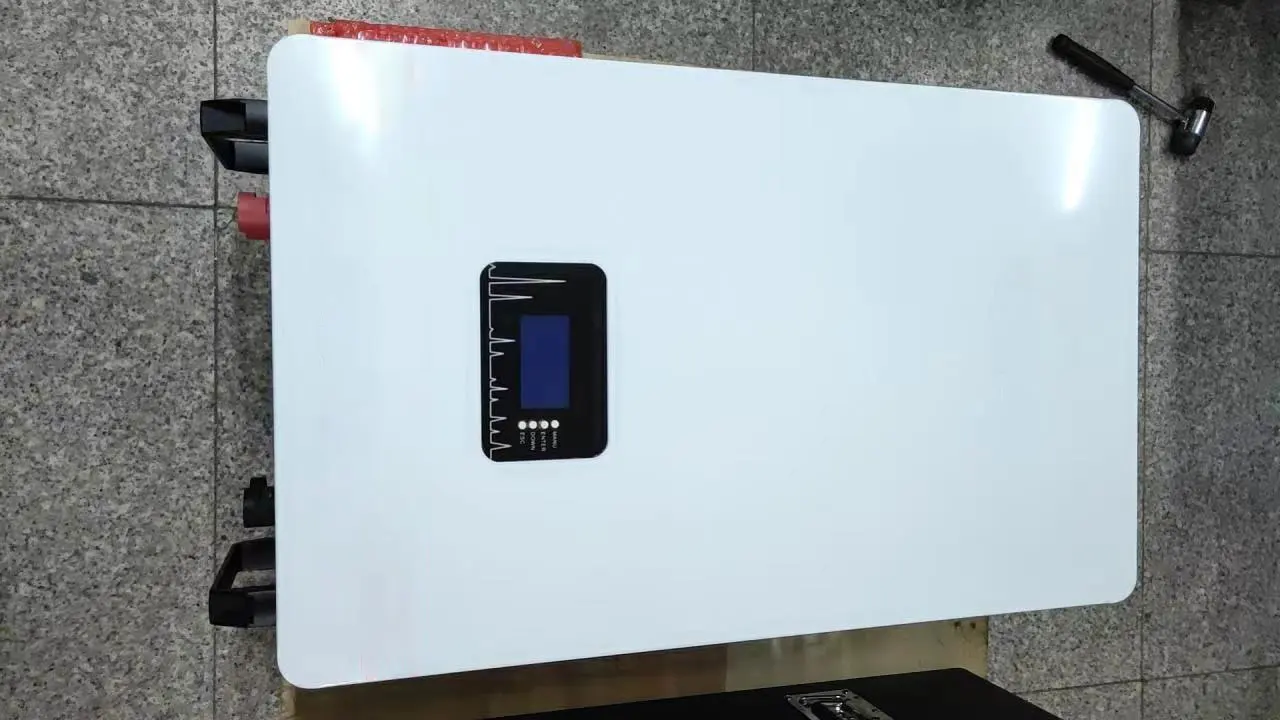

6000 Cycles 48v 200ah 5kwh 48v 51.2v Lithium Ion Lifepo4 Battery Peak Wall Mounted Type Solar Panel Batteries Pack System

Description

ESS UPS Lifepo4 batterie solaire lithium 200ah 48V Lifepo4 battery pack Solar storage battery

PRODUCT OVERVIEW

* Model: LFP48200-W
* Dimensions: 560*440*240mm
* Weight: 90kg
* Charging feature:

* Charge voltage: 58V
* Maximum charge current: 25A
* Maximum charge voltage range: 58.4V
* Minimum charge voltage range: 56.8V
* Mains power supply power:

* Voltage: 52.8V
* Maximum current: 25V
* Voltage range: 57.6-58.4V

Product Description

Specification

Basic Parameters	Voltage	51.2V
	Capacity	200Ah(Standard )
	Energy	10240Wh
	Internal resistance	≤100mΩ
	Standard cycles	≥3000(@0.5C,80%DOD,25℃)
	Self discharge	<5%(after 90 days storage)
	Standard warranty	5 years(longer warranty accoording to customers)
Size and weight	Length	560mm
	Width	440mm
	Height	240mm
	Weight	90Kg

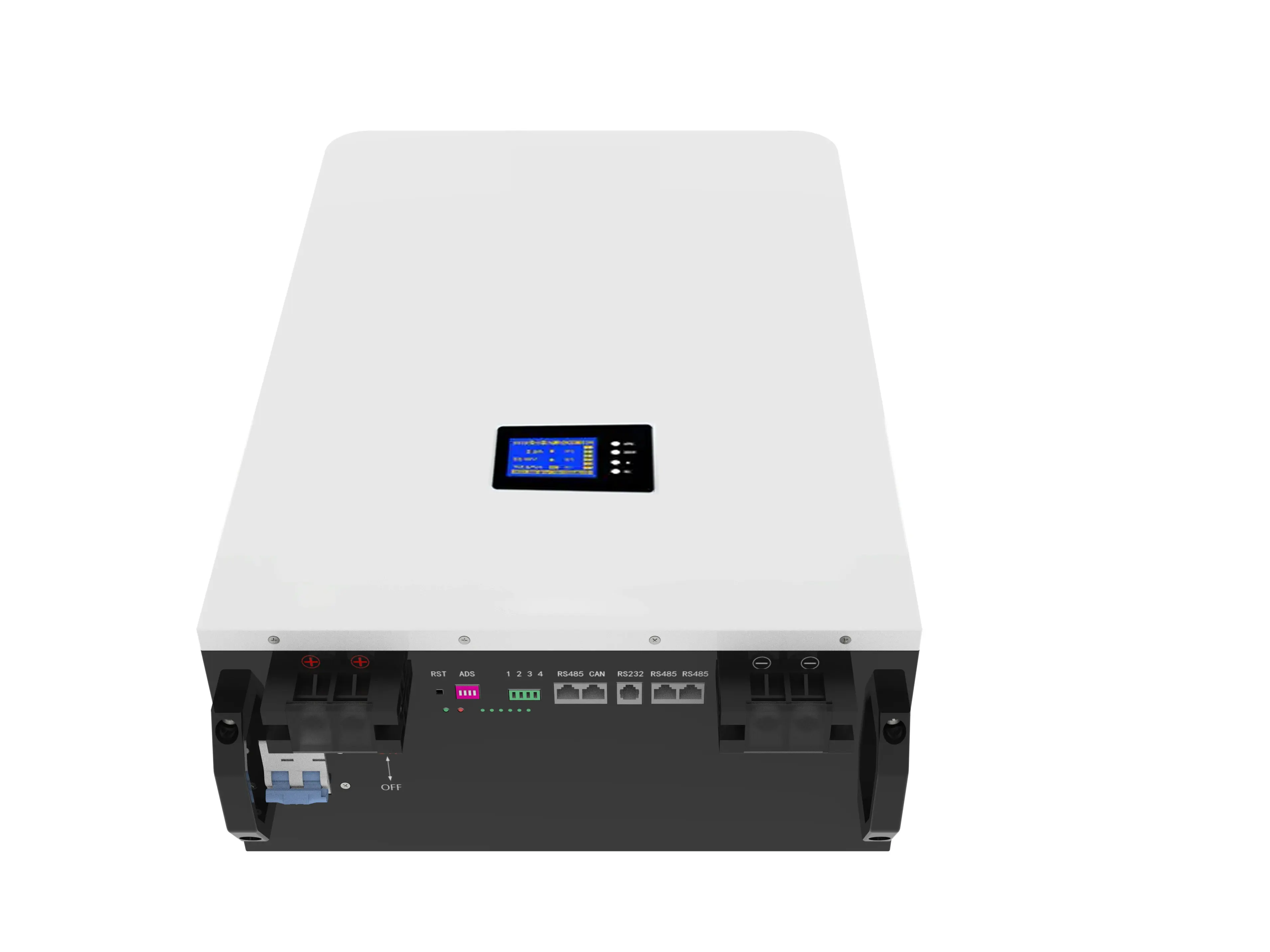

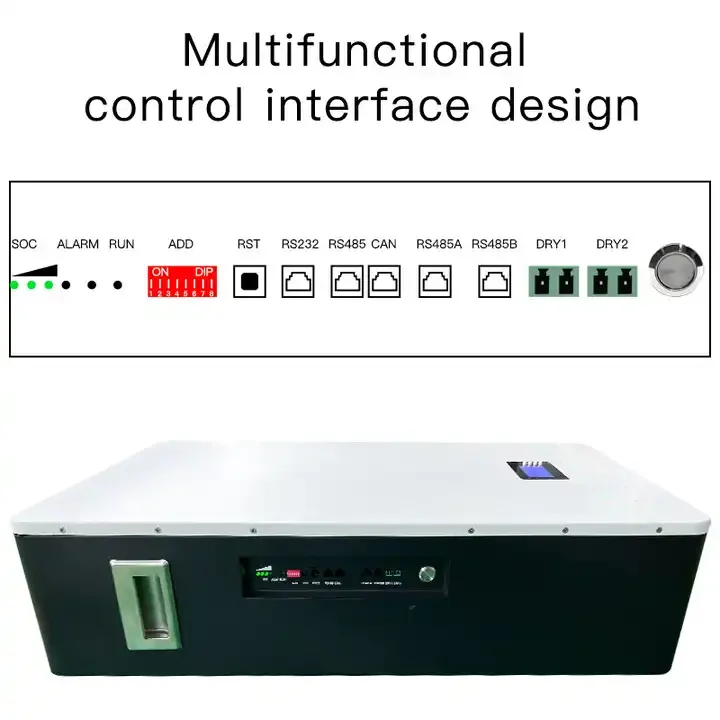

Electrical Parameters	Communication ports	CAN/RS485
	Compatible inverters	Growatt/Goodwe/Deye/Srne/Voltronic and others
	Charging mode	CC/CV
	Charging Current	0.2C/40A(Standard)
		1C/200A(Maximum constant current@25℃)
	Overcharge protection voltage	57.6V
	Discharge mode	CC/CV
	Discharge Current	0.2C/40A(Standard )
		1C/200A(Maximum constant current@25℃)
	Over-discharge protection voltage	58.4V
Working Parameters	Working Temperature	Charge(Small Current):0℃~+45℃
		Discharge(Small Current)-20℃~+55℃
	Storage Temperature	Conventional storage temperature:-10~+45℃(Three months ,SOC:20%~60%)
		Conventional storage temperature: < 1 month：-5~+45℃ >6 months：0~+35℃
	Storage Humidity	5%~95%
	Transportation Environment	Voltage:43.5V~51.6V
		SOC:30%~60%
