Description

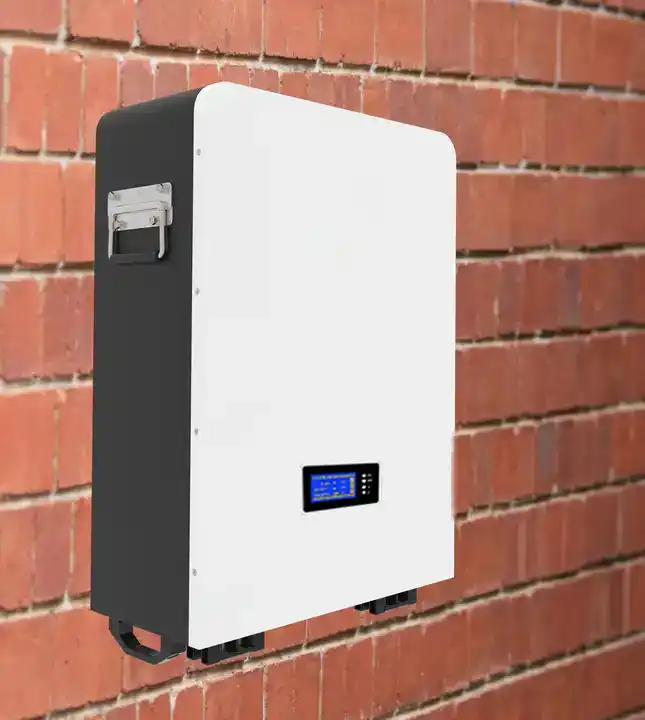

PRODUCT OVERVIEW
* Model: LFP48200-W
* Dimensions: 560*440*240mm
* Weight: 90kg
* Charging feature:
* Dimensions: 560*440*240mm
* Weight: 90kg
* Charging feature:
* Charge voltage: 58V
* Maximum charge current: 25A
* Maximum charge voltage range: 58.4V
* Minimum charge voltage range: 56.8V
* Mains power supply power:
* Maximum charge current: 25A
* Maximum charge voltage range: 58.4V
* Minimum charge voltage range: 56.8V
* Mains power supply power:
* Voltage: 52.8V
* Maximum current: 25V
* Voltage range: 57.6-58.4V
* Maximum current: 25V
* Voltage range: 57.6-58.4V
Product Description
Specification
Basic Parameters | Voltage | 51.2V | |||||||
Capacity | 200Ah(Standard ) | ||||||||
Energy | 10240Wh | ||||||||
Internal resistance | ≤100mΩ | ||||||||
Standard cycles | ≥3000(@0.5C,80%DOD,25℃) | ||||||||
Self discharge | <5%(after 90 days storage) | ||||||||
Standard warranty | 5 years(longer warranty accoording to customers) | ||||||||
Size and weight | Length | 560mm | |||||||
Width | 440mm | ||||||||
Height | 240mm | ||||||||
Weight | 90Kg | ||||||||
Electrical Parameters | Communication ports | CAN/RS485 | |||||||
Compatible inverters | Growatt/Goodwe/Deye/Srne/Voltronic and others | ||||||||
Charging mode | CC/CV | ||||||||
Charging Current | 0.2C/40A(Standard) | ||||||||
1C/200A(Maximum constant current@25℃) | |||||||||
Overcharge protection voltage | 57.6V | ||||||||
Discharge mode | CC/CV | ||||||||
Discharge Current | 0.2C/40A(Standard ) | ||||||||
1C/200A(Maximum constant current@25℃) | |||||||||
Over-discharge protection voltage | 58.4V | ||||||||
Working Parameters | Working Temperature | Charge(Small Current):0℃~+45℃ | |||||||
Discharge(Small Current)-20℃~+55℃ | |||||||||
Storage Temperature | Conventional storage temperature:-10~+45℃(Three months ,SOC:20%~60%) | ||||||||
Conventional storage temperature: < 1 month：-5~+45℃ >6 months：0~+35℃ | |||||||||
Storage Humidity | 5%~95% | ||||||||
Transportation Environment | Voltage:43.5V~51.6V | ||||||||
SOC:30%~60% | |||||||||
Packing & Delivery
STANDARD PACKAGE : 1PC in a wooden carton
FAQ
Q1: Can I have samples to test? And what is lead time for sample order?
Yes, we can supply samples in 5-7 days depending on different product items and clients’ requirement.For normal in stock product, 2~5 days; For customized product, 3~7days depends on requirements.
Q2: What is the warranty for the products?
1~10 years,Since our product range is wide,Minimum12v 40Ah, Max 2MW container energy storage system, Different products has different warranty,welcome to check before placing order.
Q3: What is your company’s advantage?
We’re direct factory,have very rich exprience in customizing kinds of high voltage,high capacity, high
performance battery packs for 12v / 24v / 48v / 80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V / 460V / 614V Aircraft tractors, heavy truck, Mine train,110v / 220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.
Q4: Do you accept OEM/ODM?
Yes,welcome!
Q5: What is the lead time for the mass order?
Generally speaking, about 7~20 days depending on different items after getting down payment and confirmation about
the samples.
